DevFest Vienna 2013

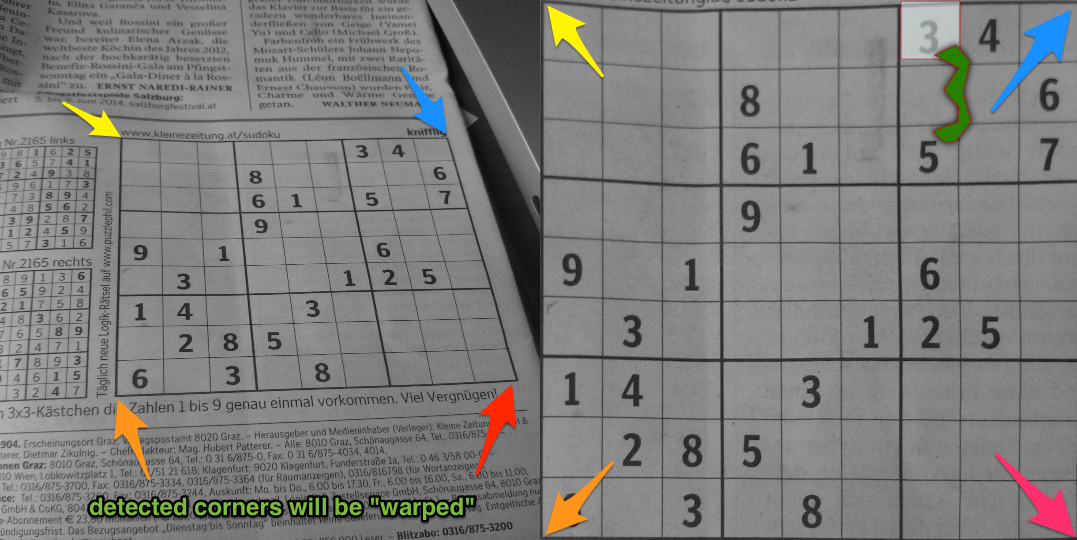

Not long ago I had the opportunity to present my Sudoku2go project at the DevFest Vienna 2013, which was recorded and is available on Youtube.

I switch to english after the introduction, so skip the first minutes.

Among other things I present the basics to build a JavaFX application, show how easy it is to create user interfaces with Scene Builder, how to connect a native library (OpenCV) with the Java ecosystem, and above all how to use Scala to glue it all together.

The code is available on github, and on this blog there are several entries which describe certain aspects of the application.

Thanks +DevFest Vienna for giving me the opportunity to present the project :)

Color Extractor

While almost all of my JavaFX friends are somewhere in SF attending a small, unknown Java conference I have refined the code of the Color Extractor application (formerly known as HSV Adjuster). ;-)

Here is a screencast showing the application in action:

Here is a screenshot:

In short, the application now combines the input signal with the HSV mask you can create using the three sliders. The application writes this information into the alpha channel of the input image stream, resulting in pictures like above.

The neat thing is that the image stream is taken from your webcam, and thus it is an interactive way to explore the effects of different settings.

This solves also the greatest shortcoming of the HSV Adjuster application, which didn't yet combine the alpha information with the input image but only showed the alpha channel in black and white. The latter has its own aesthetic appeal, but I think the color extractor application better shows the original intend I had.

Implementation Notes:

The application is written in Scala, the GUI Frontend was done in JavaFX and the image processing works with OpenCV by using its Java bindings. OpenCV can split each color channel (RGB) and combine it with alpha channel information (see the alphaBlend method in the source code below).

The conversion of OpenCV Mat data to images which can be displayed by ImageView components is done by the toImage function - in contrast to earlier versions of my Webcam API layer I'm using the approach discussed here - this optimization speeds up the application considerably.

Source code of the application is available here. Below you can find the source of the main application for fast reference.

Guys, I wish you a nice time in SF and hope we'll see stunning new work for the JVM platform.

	package net.ladstatt.apps
	import javafx.scene._
	import org.opencv.core._
	import org.opencv.imgproc.Imgproc
	import javafx.application.{Platform, Application}
	import javafx.scene.control._
	import javafx.scene.image.ImageView
	import javafx.scene.layout.BorderPane
	import javafx.stage.Stage
	import java.util.ResourceBundle
	import javafx.fxml.{FXML, Initializable}
	import java.net.URL
	import javafx.beans.property.SimpleObjectProperty
	import net.ladstatt.jfx._
	import org.controlsfx.control.{HsvSlider, RangeSlider}
	object ColorExtractor {
	def main(args: Array[String]): Unit = {
	Application.launch(classOf[ColorExtractor], args: _*)
	}
	}
	class ColorExtractor extends Application with JfxUtils with Initializable with OpenCVUtils {
	val lowerBoundProperty = new SimpleObjectProperty[Scalar](new Scalar(0, 0, 0))
	def setLowerBound(lb: Scalar) = lowerBoundProperty.set(lb)
	def getLowerBound() = lowerBoundProperty.get
	val upperBoundProperty = new SimpleObjectProperty[Scalar](new Scalar(255, 255, 255))
	def setUpperBound(lb: Scalar) = upperBoundProperty.set(lb)
	def getUpperBound() = upperBoundProperty.get
	override def init(): Unit = loadNativeLibs // important to have this statement on the "right" thread
	def colorSpace(conversionMethod: Int = Imgproc.COLOR_BGR2GRAY)(input: Mat): Mat = {
	val colorTransformed = new Mat
	Imgproc.cvtColor(input, colorTransformed, conversionMethod)
	colorTransformed
	}
	def restrain(input: Mat): Mat = {
	val dest = new Mat
	val lb = getLowerBound()
	val ub = getUpperBound()
	Core.inRange(input, lb, ub, dest)
	dest
	}
	def alphaBlend(src: Mat, alpha: Mat): Mat = {
	val channels = new java.util.ArrayList[Mat]()
	Core.split(src, channels)
	channels.add(alpha)
	val merged = new Mat
	Core.merge(channels, merged)
	merged
	}
	@FXML var textFieldLbHue: TextField = _
	@FXML var textFieldLbSaturation: TextField = _
	@FXML var textFieldLbValue: TextField = _
	@FXML var textFieldUbHue: TextField = _
	@FXML var textFieldUbSaturation: TextField = _
	@FXML var textFieldUbValue: TextField = _
	@FXML var hueSlider: HsvSlider = _
	@FXML var saturationSlider: HsvSlider = _
	@FXML var valueSlider: HsvSlider = _
	@FXML var viewPort: ImageView = _
	override def start(stage: Stage): Unit = {
	stage.setTitle("Color Extractor")
	val imageService = new WebcamService
	imageService.setOnSucceeded(
	mkEventHandler(
	event => {
	val imageAsMat = event.getSource.getValue.asInstanceOf[Mat]
	val alphaChannel = restrain(colorSpace(Imgproc.COLOR_BGR2HSV)(imageAsMat))
	viewPort.imageProperty.set(toImage(alphaBlend(imageAsMat, alphaChannel)))
	imageService.restart
	}
	))
	imageService.start
	val scene = new Scene(mk[BorderPane](mkFxmlLoader("/colorextractor.fxml", this)))
	stage.setScene(scene)
	stage.show
	}
	def initialize(url: URL, resourceBundle: ResourceBundle): Unit = {
	def initRangeSlider(pos: Int, slider: RangeSlider, lowerTextField: TextField, upperTextField: TextField): Unit = {
	slider.lowValueProperty().addListener(mkChangeListener[Number](
	(obVal, oldVal, newVal) => {
	val mutableBounds = getLowerBound.`val`
	mutableBounds(pos) = newVal.doubleValue()
	setLowerBound(new Scalar(mutableBounds))
	lowerTextField.setText("%.2f".format(newVal.doubleValue))
	}
	))
	slider.highValueProperty().addListener(mkChangeListener[Number](
	(obVal, oldVal, newVal) => {
	val mutableBounds = getUpperBound.`val`
	mutableBounds(pos) = newVal.doubleValue()
	setUpperBound(new Scalar(mutableBounds))
	upperTextField.setText("%.2f".format(newVal.doubleValue))
	}
	))
	}
	def setRangeSlider(slider: RangeSlider)(range: (Double, Double)) {
	slider.setLowValue(range._1)
	slider.setHighValue(range._2)
	}
	def setHueSlider = setRangeSlider(hueSlider) _
	def setSaturationSlider = setRangeSlider(saturationSlider) _
	def setValueSlider = setRangeSlider(valueSlider) _
	initRangeSlider(0, hueSlider, textFieldLbHue, textFieldUbHue)
	initRangeSlider(1, saturationSlider, textFieldLbSaturation, textFieldUbSaturation)
	initRangeSlider(2, valueSlider, textFieldLbValue, textFieldUbValue)
	setHueSlider((0.0, 179.0))
	setSaturationSlider((0.0, 255.0))
	setValueSlider((0.0, 255.0))
	}
	}

view raw ColorExtractor.scala hosted with ❤ by GitHub

Nashorn Javascript Engine with JDK8 - Hello World

In the upcoming JDK8 release a new Javascript engine called Nashorn will be included. Together with a new command line program called "jjs" it is trivial to write applications in Javascript which in turn can utilize any JVM based library.

A hello world application could look like this:

java.lang.System.out.println("hello world");

This line should be put into a file called 'hello.js' and then you can start the Nashorn engine by issuing following command:

$JAVA_HOME/bin/jjs hello.js


Embedding javascript code in Scala applications is also easy by using the JSR223.

	import javax.script.ScriptEngineManager
	object NashornHelloWorld {
	def main(args: Array[String]): Unit = {
	new ScriptEngineManager().getEngineByName("nashorn").eval("print('Hello, World')")
	}
	}

view raw NashornHelloWorld.scala hosted with ❤ by GitHub

For a more detailed discussion on this topic you can read the Java Scripting Programmer's Guide or skim through this slides by Attila Szegedi. Maybe you stop by the nice blog post from Felix Bembrick how to combine Nashorns superpowers with JavaFX canvas to get an idea what can be possible.

Of course, there are other approaches to combine Scala and Javascript, but this is another story ...

HSV Adjuster - interactive HSV colorspace application

The application I'm describing in this blog post can help you determining HSV values for objects you show to your webcam.

Here is a video:

Here is a screenshot:

screenshot of the application

Here is complete the source, lookup apps/hsvadjuster/ application.

Maybe you take the time to read a little about HSV in the wikipedia.

This application uses b103 of the early access release of JDK8 and additionally the controlsFX library written by the fxexperience team. The widget I'm using is called RangeSlider.

This time I've used fxml, if you want to use widgets like the RangeSlider don't forget to import them in the header instructions.

This post was very heavily inspired by a blog post on object detection using color separation for C++. Thanks for sharing. There you can find how to use the application to find proper lower and upper bounds for your light conditions and target colors.

For reference, I've created a gist to quickly browse through the key parts of the code:

	package net.ladstatt.apps
	import javafx.scene._
	import org.opencv.core._
	import org.opencv.imgproc.Imgproc
	import javafx.application.{Platform, Application}
	import javafx.scene.control._
	import javafx.scene.image.ImageView
	import javafx.scene.layout.BorderPane
	import javafx.stage.Stage
	import scala.Some
	import java.util.ResourceBundle
	import javafx.fxml.{FXML, Initializable}
	import java.net.URL
	import javafx.beans.property.SimpleObjectProperty
	import net.ladstatt.jfx._
	import org.controlsfx.control.{HsvSlider, RangeSlider}
	object HsvAdjuster {
	def main(args: Array[String]): Unit = {
	Application.launch(classOf[HsvAdjuster], args: _*)
	}
	}
	class HsvAdjuster extends Application with JfxUtils with Initializable with OpenCVUtils {
	// width and height of input image
	val (webCamWidth, webCamHeight) = (1280, 720)
	val lowerBoundProperty = new SimpleObjectProperty[Scalar](new Scalar(0, 0, 0))
	def setLowerBound(lb: Scalar) = lowerBoundProperty.set(lb)
	def getLowerBound() = lowerBoundProperty.get
	val upperBoundProperty = new SimpleObjectProperty[Scalar](new Scalar(255, 255, 255))
	def setUpperBound(lb: Scalar) = upperBoundProperty.set(lb)
	def getUpperBound() = upperBoundProperty.get
	override def init(): Unit = loadNativeLibs // important to have this statement on the "right" thread
	def colorSpace(conversionMethod: Int = Imgproc.COLOR_BGR2GRAY)(input: Mat): Mat = {
	val colorTransformed = new Mat
	Imgproc.cvtColor(input, colorTransformed, conversionMethod)
	colorTransformed
	}
	def restrain(input: Mat): Mat = {
	val dest = new Mat
	val lb = getLowerBound()
	val ub = getUpperBound()
	Core.inRange(input, lb, ub, dest)
	dest
	}
	val colorRanges: Map[String, (Double, Double)] = Map("ALLHue" ->((0.0, 179.0)),
	"ALLSaturation" ->((0.0, 255.0)),
	"ALLValue" ->((0.0, 255.0)),
	"orange" ->((165.0, 179.0)),
	"yellow" ->((16.0, 28.0)),
	"green" ->((92.0, 103.0)),
	"blue" ->((103.0, 115.0)),
	"white" ->((130.0, 160.0)),
	"red" ->((160.0, 179.0)))
	@FXML var labelLbHue: Label = _
	@FXML var labelLbSaturation: Label = _
	@FXML var labelLbValue: Label = _
	@FXML var labelUbHue: Label = _
	@FXML var labelUbSaturation: Label = _
	@FXML var labelUbValue: Label = _
	@FXML var hueSlider: HsvSlider = _
	@FXML var saturationSlider: HsvSlider = _
	@FXML var valueSlider: HsvSlider = _
	@FXML var viewPort: ImageView = _
	@FXML var orangePresetButton: Button = _
	@FXML var yellowPresetButton: Button = _
	@FXML var greenPresetButton: Button = _
	@FXML var bluePresetButton: Button = _
	@FXML var whitePresetButton: Button = _
	@FXML var redPresetButton: Button = _
	def initPresetButton(button: Button, range: (Double, Double)) {
	button.setOnAction(mkEventHandler(e => {
	hueSlider.setLowValue(range._1)
	hueSlider.setHighValue(range._2)
	}))
	}
	def toGray = colorSpace(Imgproc.COLOR_BGR2GRAY) _
	def toHsv = colorSpace(Imgproc.COLOR_BGR2HSV) _
	override def start(stage: Stage): Unit = {
	stage.setTitle("HsvAdjuster")
	val imageService = new WebcamService
	imageService.setOnSucceeded(
	mkEventHandler(
	event => {
	val grabbedMat = restrain(colorSpace(Imgproc.COLOR_BGR2HSV)(event.getSource.getValue.asInstanceOf[Mat]))
	Platform.runLater(
	new Runnable() {
	def run = {
	viewPort.imageProperty.set(toImage(grabbedMat))
	imageService.restart
	}
	}
	)
	}
	))
	imageService.start
	val scene = new Scene(mk[BorderPane](mkFxmlLoader("/hsvadjuster.fxml", this)))
	stage.setScene(scene)
	stage.show
	}
	def initialize(url: URL, resourceBundle: ResourceBundle): Unit = {
	def initRangeSlider(pos: Int, slider: RangeSlider, lowerLabel: Label, upperLabel: Label): Unit = {
	slider.lowValueProperty().addListener(mkChangeListener[Number](
	(obVal, oldVal, newVal) => {
	val mutableBounds = getLowerBound.`val`
	mutableBounds(pos) = newVal.doubleValue()
	setLowerBound(new Scalar(mutableBounds))
	lowerLabel.setText("%.2f".format(newVal.doubleValue))
	}
	))
	slider.highValueProperty().addListener(mkChangeListener[Number](
	(obVal, oldVal, newVal) => {
	val mutableBounds = getUpperBound.`val`
	mutableBounds(pos) = newVal.doubleValue()
	setUpperBound(new Scalar(mutableBounds))
	upperLabel.setText("%.2f".format(newVal.doubleValue))
	}
	))
	}
	def setRangeSlider(slider: RangeSlider)(range: (Double, Double)) {
	slider.setLowValue(range._1)
	slider.setHighValue(range._2)
	}
	def setHueSlider = setRangeSlider(hueSlider) _
	def setSaturationSlider = setRangeSlider(saturationSlider) _
	def setValueSlider = setRangeSlider(valueSlider) _
	initRangeSlider(0, hueSlider, labelLbHue, labelUbHue)
	initRangeSlider(1, saturationSlider, labelLbSaturation, labelUbSaturation)
	initRangeSlider(2, valueSlider, labelLbValue, labelUbValue)
	setHueSlider(colorRanges("ALLHue"))
	setSaturationSlider(colorRanges("ALLSaturation"))
	setValueSlider(colorRanges("ALLValue"))
	initPresetButton(orangePresetButton, colorRanges("orange"))
	initPresetButton(yellowPresetButton, colorRanges("yellow"))
	initPresetButton(greenPresetButton, colorRanges("green"))
	initPresetButton(bluePresetButton, colorRanges("blue"))
	initPresetButton(whitePresetButton, colorRanges("white"))
	initPresetButton(redPresetButton, colorRanges("red"))
	}
	}

view raw HsvAdjuster.scala hosted with ❤ by GitHub
